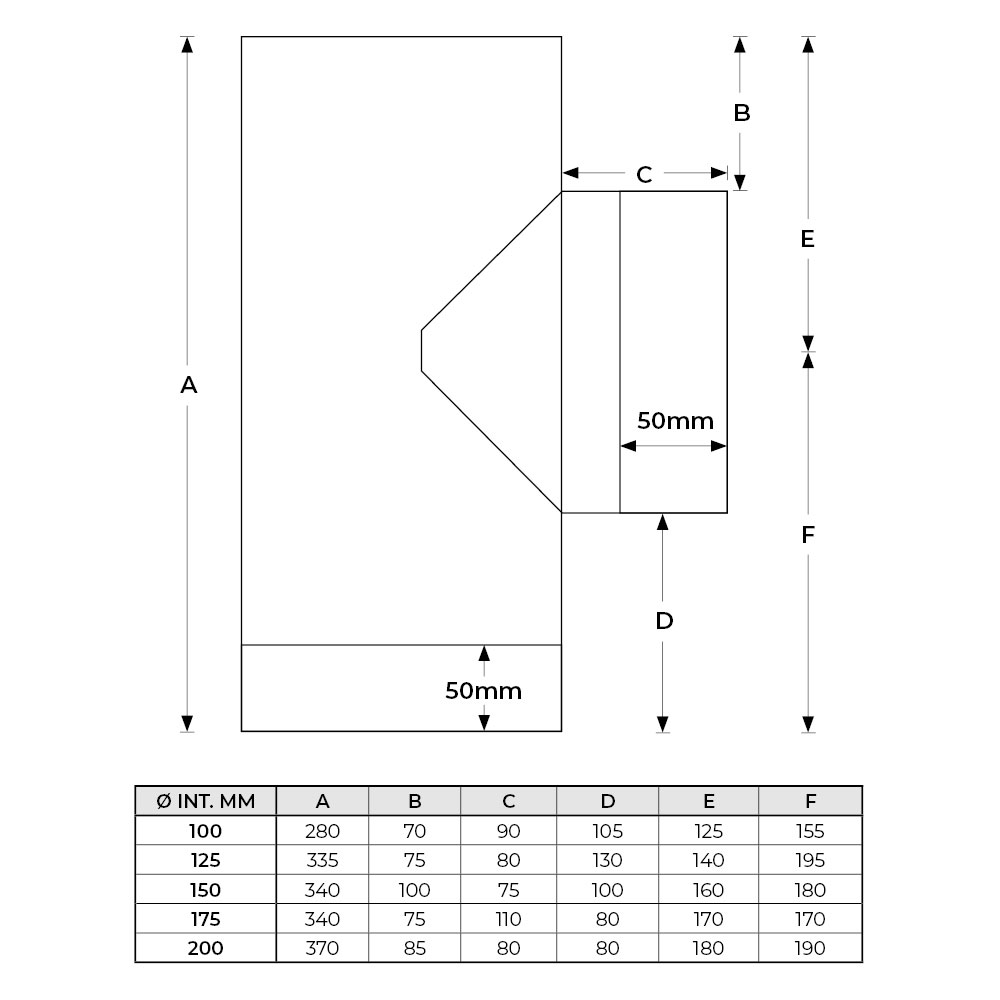

90 degree tee for installation to a rear connection from the stove. A tee cap is included for the base of the tee to allow sweeping access.
Vit Smooth black stove pipe is a single skin flue system manufactured in zero carbon steel with vitreous enamel coating in a matt black finish.
Vit Smooth stove pipe should only be used as a connecting pipe between your appliance and flue liner, chimney stack, or twin wall flue system. Black stove pipe should NOT be used to pass through ceilings or walls.
Fuel Type: Gas, oil and approved solid fuels
Inner Casing Material: 1.2mm low carbon mild steel
Outer Casing Material: Powder Enamel
Joint Method: Friction fit, only requires jointing compound at the appliance connection
Designation (Seal): EN1856-2 T600 N1 D Vm L80120 G450 NMØ150mm
CE Approved: Yes
Max Operating Temperature: 600°C
Warranty: 2 Year product warranty
Installation
You should not install a piece of Vit Smooth black stove pipe within 3 times the diameter of the flue from combustible material, e.g. wood, plaster boards, etc. For example, a 4 inch (100mm) diameter piece of Vit Smooth black stove pipe should be 12 inches (300mm) away from combustible materials. When installing make sure the Vit Smooth black stove pipe is installed the correct way up - the smaller diameter should always be pointing downward. This is because all the condensates will stay within the flue system and not pass to the outside of stove pipe. Each joint should be coated with a jointing compound (fire cement or high temperature silicone sealant). This makes sure that no condensate can escape and spoil the appearance of the pipe.
Maintenance
You should make provision for inspecting and cleaning the chimney. This is particularly important on solid fuel applications. You can acheive this by installing a black pipe with an access door. It is recommended that chimneys serving solid fuel appliances be swept and maintained as frequently as necessary but at least once a year.
